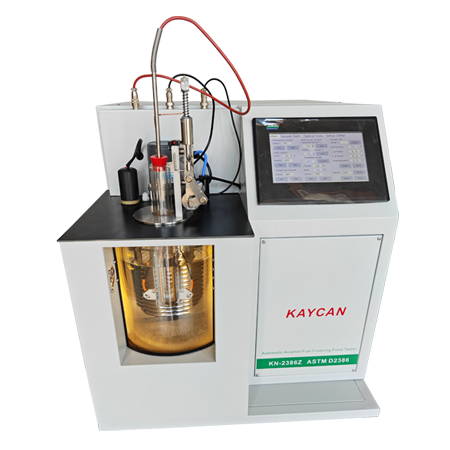

KN-2386Z Automatic Aviation Fuel Freezing Point Apparatus

Overview

KN-2386Z Automatic Freezing Point Apparatus conforms to  ASTM D2386 Standard Test Method for Freezing Point of Aviation Fuels. This apparatus covers the determination of the temperature below which solid hydrocarbon crystals may form in aviation turbine fuels and aviation gasoline.

Features

1. 7-inch color LCD touch screen, stylish and beautiful. All English control software is clear and intuitive.

2. Using Danfoss compressors, it has fast cooling speed and stable performance.

3. Using unique electromagnetic stirring technology, the stirring device is simple and beautiful, and the stirring frequency is adjustable.

4. Equipped with automatic lifting mechanism, stable and fast lifting.

5. Using imported photoelectric sensors instead of manually judging the freezing point, the test result is accurate.

6. The host computer is controlled by a microprocessor program, the temperature is automatically lowered during the test, the test tube is automatically raised and lowered, the freezing point can be automatically identified, stored, and printed, and it will automatically stop after the test.

Technical parameter:

1. Applicable standard: ASTM D2386

2. Temperature control range: room temperature~-70℃

3. Temperature control accuracy: ±0.1℃

4. Refrigeration method: imported cascade compressor

5. Stirring method: electromagnetic stirring

6. Stirring frequency: 60 times/min

7. Detection method: photoelectric sensor

8. Storage records: 200 records

9. Printing method: micro printer

10. Main engine power: 1.5KW

11. Power supply: AC 220V±10% 50HZ
