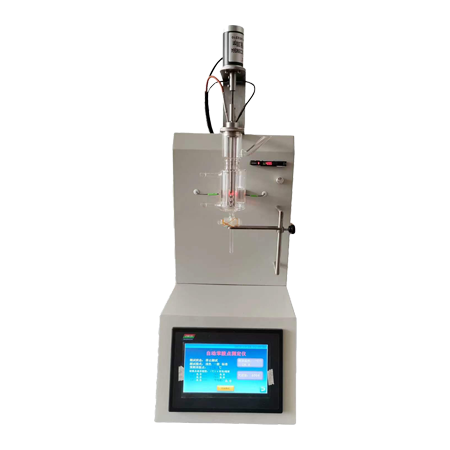

KN-611Z Automatic Aniline Point Apparatus

Overview

    This apparatus conforms to ASTM D611 Standard Test Methods for Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents, mainly used for determination of the aniline point of petroleum products and hydrocarbon solvents, also can be used for testing the mixed aniline point of petroleum products and hydrocarbon solvents having aniline points below the temperature at which aniline will crystallize from the aniline-sample mixture.

Features

1. 7-inch color LCD touch screen, stylish and beautiful. All English control interface is clear and intuitive.

2. Using imported photoelectric sensors make accurate test results and consistent repeatability.

3. Equips with over-temperature alarm function, when the sample temperature exceeds 170℃during the test, the buzzer will automatically alarm and stop the test.

4. Simple operation, one-key start, the test process is automatically completed.

5. The host adopts microprocessor program control, automatic heating, stirring, and identification of aniline points, automatic storage, automatic printing, and automatic shutdown at the end of the test.

Technical parameter

1. Applicable standard: ASTM D611

2. Temperature control range: room temperature~170℃

3. Temperature control accuracy: ±0.1℃.

4. Heating method: electric heating rod

5. Heating power: 60W

6. Stirring method: the motor drives the soft shaft to stir

7. Detection method: photoelectric sensor

8. Storage records: 200 records

9. Printing method: micro printer

10. Power supply: AC 220V±10% 50HZ

Optional accessories

1, Stainless steel tray: one

2, glass test tube: one
