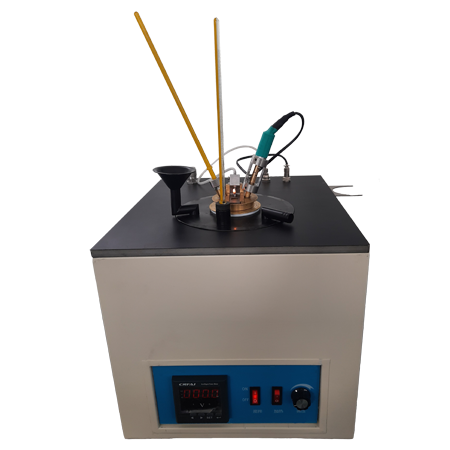

KN-170 Abel Closed Cup Flash Point Tester

Overview

    KN-170 Abel Closed Cup Flash Point Tester conforms to ISO 13736 Petroleum Products and Other Liquids - Determination of Flash Point - Abel Closed Cup Method.  This International Standard specifies a method for the determination of the closed cup flash point of petroleum products and other liquids having flash points between -30℃ and 70℃ inclusive.   However the precision given for the method is only valid for flash points in the range -5℃ to 66.5℃. This standard is not acceptable to water borne paints which may however be tested using ISO 3679

Features
1. Full stainless steel gas pipeline
2. High precision needle valve
3. Stand reagent calibration
4. Low temperature circulating bath is optional

Technical Parameters
1. Rated voltage：AC 220V±10% 50Hz
2. Power：350W
3. Ignition method：Gas
4. Measuring range：-30～70℃
5. Stirring speed：30r/min
6. Repetitive error：＜±1℃
7. Ambient requirement：Temperature: 5～40℃；Humidity≤85%
