KN-14538 ICP for Biodiesel（B100）

Overview

KN-14583 conforms to EN14538 Fat and oil derivatives - Fatty acid methyl ester (FAME) - Determination of Ca, K, Mg and Na content by optical emission spectral analysis with inductively coupled plasma (ICP OES).

Elemental composition of biodiesel is required for product quality-control, auto-engine life, emissions control, and researching appropriate additives. The use of microwave assisted acid digestion reaction system to prepare neat biodiesel (B100) samples in an aqueous medium for simultaneous inductively coupled plasma optical emission spectrometer (ICP-OES) analyses is reported. Biodiesel produced by transesterification reaction was subjected to the test method using calibration standards prepared in an aqueous medium. Significant correlation for the spiked B100 samples, instrument detection limits, accuracy, and precision data showed that elemental concentrations can easily be determined within the specified limits. The method avoids switching any of the ICP-OES accessories required for high organic loads. This method is most appropriately devised for biodiesel analysis than petrochemicals analysis..

Table 1, Main Technical Parameters of KN-14538

High Frequency Generator
Working Frequency	27.12MHz
Stability	﹤0.05％
Output power	800W ～1600W
Stability	≤0.05％
Matching method	Automatic
Scanning spectrometer
Light path	Czerny turner
Focal length	1000mm
Raster specification	Ion-etched holographic grating, engraved line density 3600L/mm or 2400L/mm; scribed area (80×110)mm
Line dispersion reciprocal	0.26nm/m
Resolution	≤0.008nm(3600 wire grating）
Resolution	≤0.015nm(2400 wire grating)
Main host parameters
Scanning wavelength range	195nm～500nm（3600L/mm wire grating）
Scanning wavelength range	195nm～800nm（2400L/mm wire grating）
Repeatability	RSD≤1.5％
Stability	RSD≤2.0％

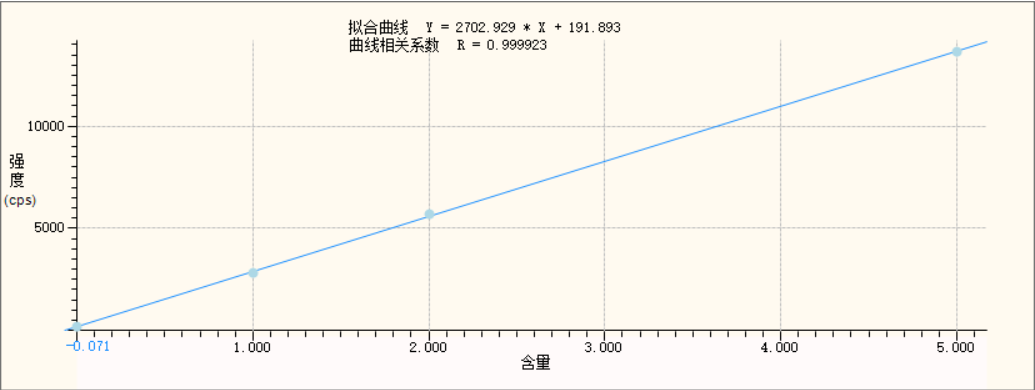

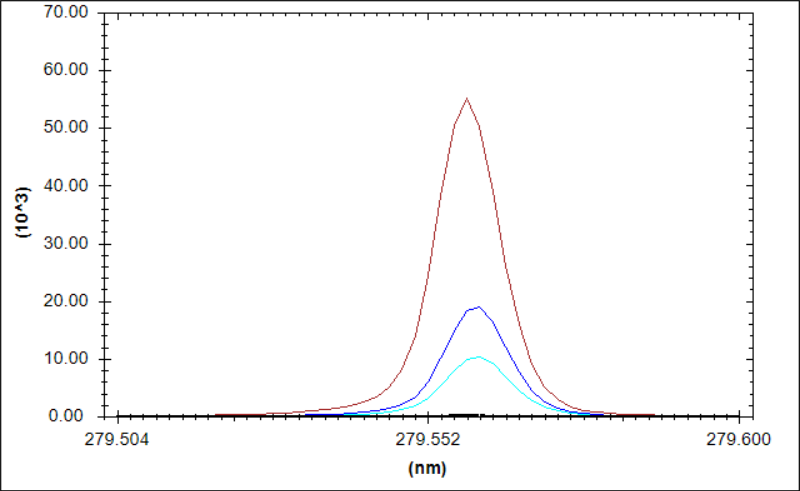

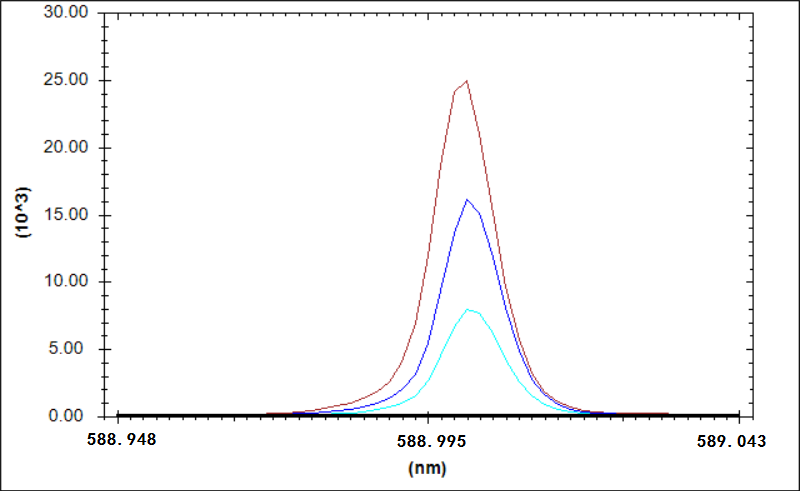

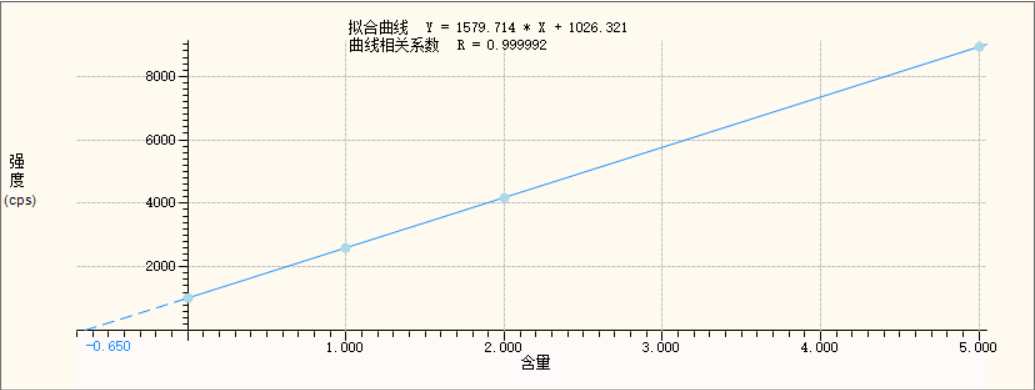

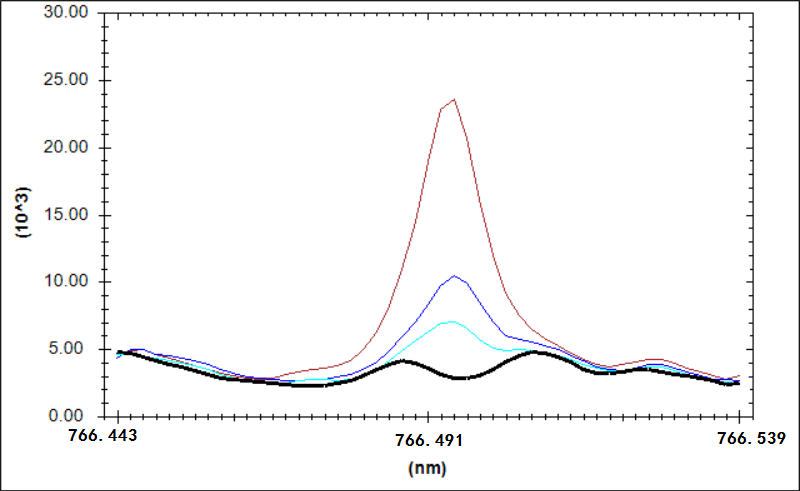

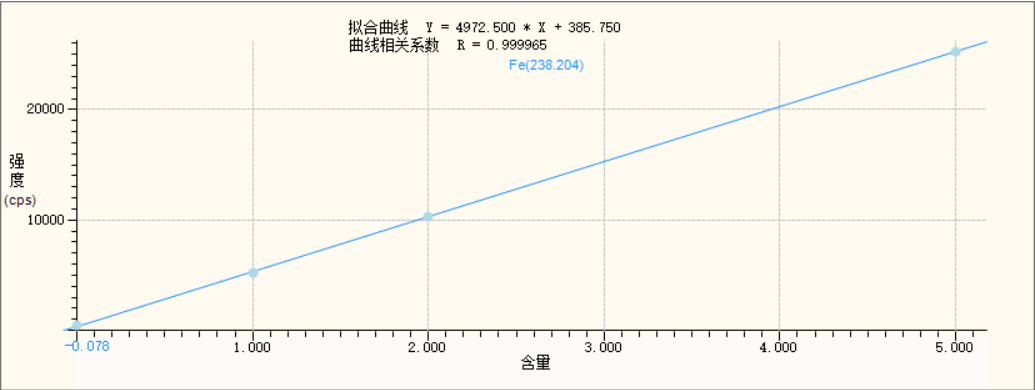

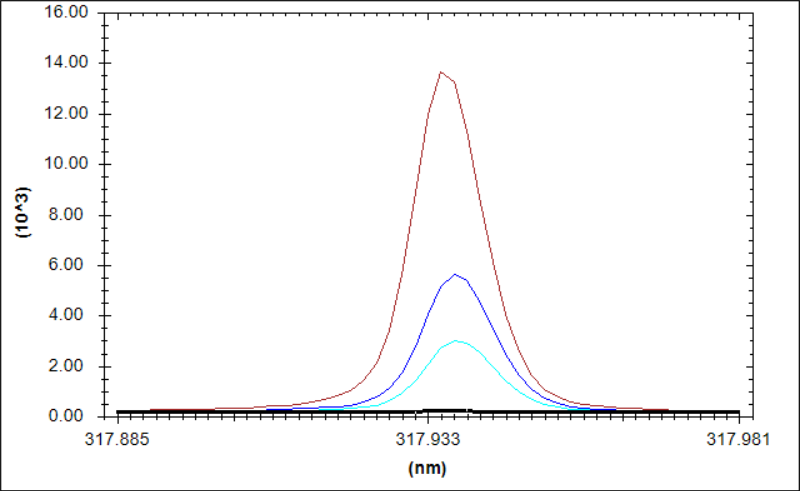

Typical element spectrum and curve:
