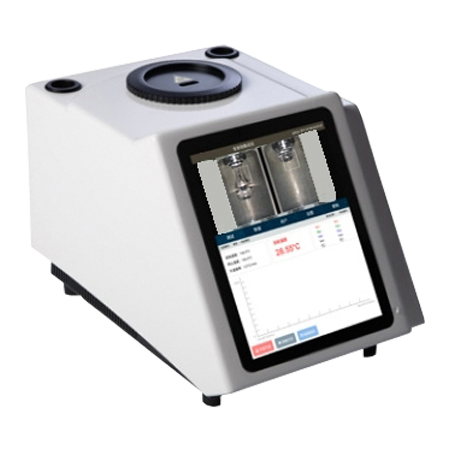

KN-70 Automatic Dropping Point, Melting Point and Softening Point Tester

Overview

KN-70 Automatic Dropping Point, Melting Point and Softening Point Tester perfectly combines high-precision temperature control technology and high-definition video camera technology, not only to provide users with accurate, stable, and reliable test results, but also to provide users with efficient and convenient test experience. The high-definition video can easily and clearly see the whole process of the sample state change, and the real-time spectrum display is automatically detected, which is convenient for the user to accurately measure the dropping point/softening point of the sample. Standard cups and measurement methods can ensure the accuracy of the results.

Features

1.         HD video visual sample changes;

2.         Fully automatic one-button automatic measurement;

3.         Test two samples at a time;

4.         Can print data directly through the printer;

5.         Compliance with 21CFR Part 11, audit trail, Pharmacopoeia 2020 and electronic signature;

6.         In line with national standards and international standards.

Applicable standard

ASTM D3104 Standard Test Method for Softening Point of Pitches (Mettler Softening Point Method)

ASTM D3461 Standard Test Method for Softening Point of Asphalt and Pitch (Mettler Cup-and-Ball Method)

ASTM D6090 Standard Test Method for Softening Point Resins (Mettler Cup and Ball Method)

ASTM D3954 Standard Test Method for Dropping Point of Waxes

ASTM D2265 Standard Test Method for Dropping Point of Lubricating Grease Over Wide Temperature Range

ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease

ASTM D127 Standard Test Method for Drop Melting Point of Petroleum Wax, Including Petrolatum

ASTM D87 Standard Test Method for Melting Point of Petroleum Wax (Cooling Curve)

Technical parameters

1.         Temperature range: Ambient~400℃

2.         Temperature resolution: 0.01℃

3.         Detection mode: Automatic (manual mode is available)

4.         Heating rate: 0.1~20℃/min

5.         Accuracy: ±0.2℃(＜250℃),±0.5℃ (＞250℃)

6.         User management: 15

7.         Display mode: 8.1 inch color LCD

8.         Processing capacity: 2 per batch

9.         Test program: 400 sets

10.     Data interface: USD, RS232, network port

11.     Comply with GLP specification: YES

12.     Power supply: 220V，50Hz, 120W

13.     Storage: 64G

14.     User management: Three level authority management

15.     Compliant with 21CFR Part 11, audit trail: Yes

16.     Printing method: WIFI serial printing

17.     Export data format: PDF, Excel
