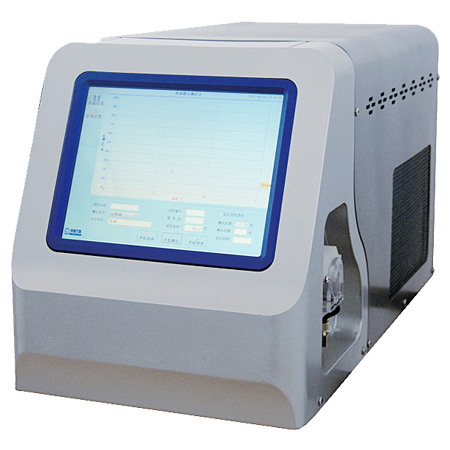

KN-7153 Automatic Rapid Freezing Point Tester

Overview

   KN-7153 Automatic Rapid Freezing Point Tester conforms to ASTM D7153 Standard Test Method for Freezing Point of Aviation Fuels (Automatic Laser Method). The freezing point of an aviation fuel is the lowest temperature at which the fuel remains free of solid hydrocarbon crystal which, if present in the fuel system of the aircraft, can restrict the flow of fuel through filters. The temperature of the fuel in the aircraft tank normally decreases during flight depending on aircraft speed, altitude, and flight duration. The freezing point of the fuel shall always be lower than the minimum operational fuel temperature.

Features

1. Accurate monitoring of oil sample changes using optical principles, automatic measurement and reporting of test results through detection software

2. Fast cooling speed, only takes 15~35min for reaching the required value

3. Peristaltic pump automatic quantitative injection, fast and efficient, be able to be set automatically for repeated determination

4. Equipped with stirring function, also meets the traditional method

5. 10.4 touch LCD

6. Efficient and fast database function, easy to consult and call the saved result

7. Password protection, to ensure the database security

8. All imported crucial parts to ensure the performance and reliability

Technical parameters

1. Rated voltage: 198V~242V, 50Hz

2. Power: 1100W

3. Temperature range: -70~10℃

4. Test time: 15~35min

5. Sample required: 12ml

6. Ambient temperature: 10~30℃

7. Humidity≤85%

8 Dimension: 760*470*510mm 9.Weigh: 40kg
