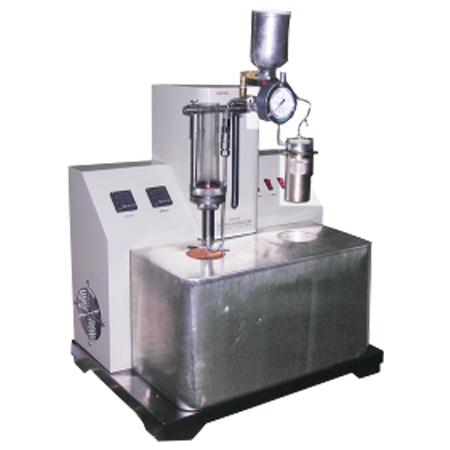

KN-7143 Ultimate Strength and Thermostrengthening Tester

Overview

KN-7143 Ultimate Strength and Thermostrengthening Tester conforms to GOST 1743 Greases. Method for Determination of Ultimate Strength and Thermostrengthening. It is mainly used to measure the pressure of the grease when it is displaced in the threaded pipe of the plasticizer at the test temperature, and convert it into a strength limit value, which is expressed as Pa. The appearance design of the grease strength limit tester is beautiful and generous, the structure design is reasonable, the operation is convenient, and the results are accurate

Features

1.     Microcomputer temperature controller, with high precision and PT100 temperature sensor

2.     Equipped funnel on the top

3.     Digital display working time and will do alarm by the buzzer

4.     Two types of standard screwed tube, long type: 100mm, φ4mm, teeth space: 0.8mm

                                                                        Short type: 500mm, φ4mm, teeth space: 0.8mm

Technical parameters

1.     Temperature range: 0~100℃

2.     Cooling mode:  Compressor cooling

3.     Hot bath: Be able to heat the oil container

4.     Cooling bath: be able to keep at 20℃

5.     Temperature accuracy: 0.1℃

6.     Bath heating power: 1000W

7.     Rated voltage: 70W

8.     Rated voltage: AC220V±10%, 50Hz
