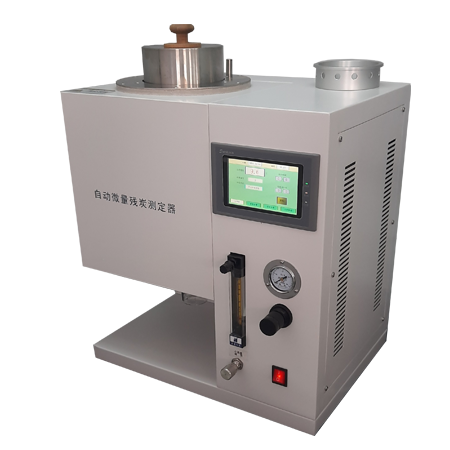

KN-4530 Micro Carbon Residue Apparatus

Overview

  KN-4530 Micro Carbon Residue Apparatus conforms to the ASTM D4530 Standard Test Method for Determination of Carbon Residue (Micro Method). This tester covers the determination of the amount of carbon residue formed after evaporation and pyrolysis of petroleum materials under certain conditions and is intended to provide some indication of the relative coke forming tendency of such materials.

Features

1. Adjust the nitrogen flow and switch the flow automatically

2. Automatic program heating, according to the curve to control the temperature and to finish all the test procedures

3. Touch screen operation, it can print and save the data

4. The apparatus equips waste gas recycle system to reduce the exhaustion of toxic substance

Technical parameters

1.Rated voltage: AC 220V±10%   50Hz

2.Heating power: 1500W

3.Coking oven: 500℃

4.Temperature control accuracy ±2℃

5.Test holes:12

6.Flow adjustment range:100ml~1000ml;150ml/min and 600ml/min automatic switch

7.Ambient requirement: Temperature: 5~40℃  Humidity≤85%
