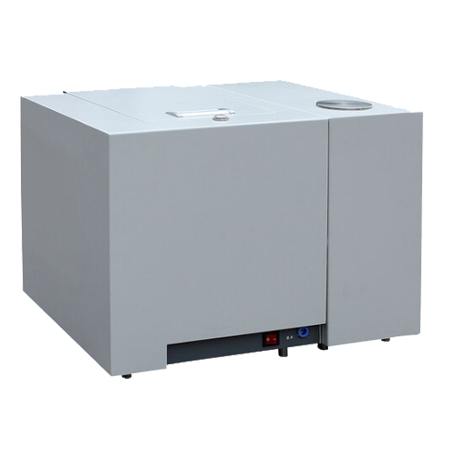

KN-5865 Automatic Calorimeter

Overview

KN-5865 Automatic Calorimeter conforms to ASTM D240 Standard Test Method for Heat of Combustion of Liquid Hydrocarbon Fuels by Bomb Calorimeter, ASTM D5865 Standard Test Method for Gross Calorific Value of Coal and Coke and ISO 1928 Solid mineral fuels — Determination of gross calorific value by the bomb calorimetric method, and calculation of net calorific value. It is applicable in the industry such as electrical power, coal, papermaking, petrochemical, cement, farming, medical research, and instruction to measure the Calorific Value of combustible materials.

Features

1. Semi-conductor water refrigeration system

2. Automatically determinate the refrigerating capacity and balance the circulation system according to the caloric of previous time.

3. No need to measure water and adjust water temperature during the whole test

4. Advanced small oxygen filling instrument with low malfunction rate.

5. Automatic replacing water by connecting the drainpipe

6. Advanced USB technology, one computer can control 1-4 calorimeter buckets or other instruments, thus to make up synthesized testing instrument

7. Be able to link electronic scale and share data in long distance through network

Technical Parameters

1. Calorimeter type: Isoperibol

2. Temperature range: 5~40℃

3. Temperature resolution: 0.0001℃

4. Precision (Precision mode): RSD≤0.1%

5. Testing time (Precision mode): 8min

6. Rated voltage: 220V, 50Hz

7. Power≤1.5KW

8. Dimension: 540mm*420mm*420mm

9. Weight: 45kg
