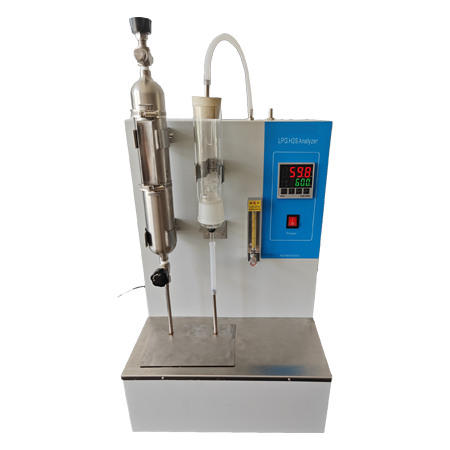

KN-2420 LPG Hydrogen Sulfide Analyzer (Lead Acetate Method)

Overview
  KN-2420 LPG Hydrogen Sulfide Analyzer (Lead Acetate Method) conform to the ASTM D2420 Standard Test Method for Hydrogen Sulfide in Liquefied Petroleum (LP) Gases (Lead Acetate Method), This analyzer covers the detection of hydrogen sulfide in liquefied petroleum (LP) gases. The sensitivity of the test is about 4 mg/m3(0.15 to 0.2 grain of hydrogen sulfide per 100 ft3) of gas.

Features
1. All glassware are frosted ground joint
2. It equips with flow and LPG sampler
3. It adopts precise needle valve to control flow rate.

Parameter
1.Rated voltage:AC220V±10%   50Hz
2.Power:1000W
3.Measuring range: Room temperature~90ºC
4.Temperature control accuracy:±2ºC
5.Flow control: Needle valve adjustment, flow meter displays the flow
