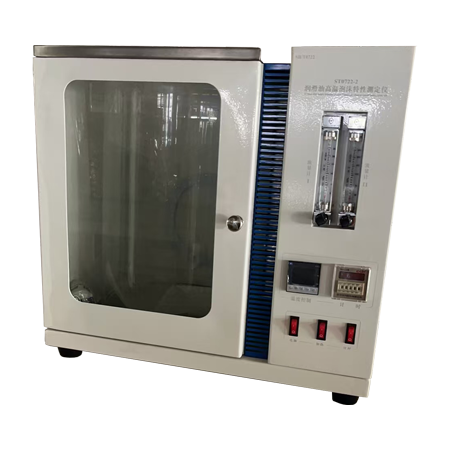

KN-6082 High-temperature Foaming Characteristic Apparatus

Overview

  KN-6082 High-temperature Foaming Characteristic Apparatus conforms to ASTM D6082 Standard Test Method for High Temperature Foaming Characteristics of Lubricating Oils, it is used to measure the tendency of oils to foam at high temperature can be serious problem in system such as high-speed gearing, high volume pumping, and splash lubrication. Foaming can cause inadequate lubrication, cavitation and loss of lubricant due to overflow.

Features

1.   Adopts integrated design, easy to maintain and repair

2.     Built-in an air pump and other components, with a compact structure and easy for observation

3.     Oil bath equipped with a high-speed silent stirring motor, and the working unit is double-unit, equipped with two 1000ml measuring cylinders, which can be used for parallel samples

4.     The temperature control system of the instrument adopts the Japanese Fuji digital display PID temperature controller, which has high temperature control accuracy, accurate temperature control and long service life. The sensor adopts stainless steel rod package PT100, which has sensitive response, high resolution, strong anti-interference, high temperature measurement and control accuracy, and strong corrosion resistance

5.     Adopts metal diffuser, the pore size is 15~60um, and the permeability is 3000ml~6000ml, which fully meets the standard requirements

6.     A piece of high-strength tempered glass is installed in front of the bath as a protective screen to avoid the danger of glass container breakage, and plays a dual role of protection and anti-scalding (for easy observation, high-brightness lighting is installed in the equipment)

Technical parameters

1.   Applicable Standard: ASTM D6082

2.     Temperature Control Mode: Digital display PID temperature controller

3.     Working Station: Double, with two flow meters

4.  Temperature Control Range: Ambient~150±0.1℃

5.     Rated Voltage: AC220V±10%, 50Hz

6.     Power: 1.5KW

7.     Metal Diffuser: 15um~60um, 3000~6000ml/min
