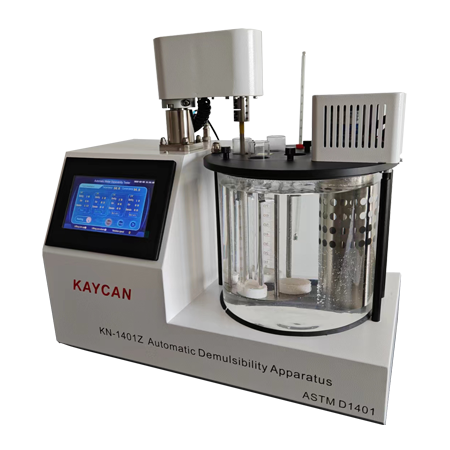

KN-1401Z Automatic Demulsibility Apparatus

Overview

  KN-1401Z Automatic Demulsibility Apparatus conforms to the ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. This apparatus provides a guide for determining the water separation characteristics of oils subject to water contamination and turbulence. It is used for specification of new oils and monitoring of in-service oils. And it covers measurement of the ability of petroleum oils or synthetic fluids to separate from water. Although developed specifically for steam-turbine oils having viscosities of 28.8–90 mm2/s at 40°C, this test method may be used to test oils of other types having various viscosities and synthetic fluids at other test temperatures. It is recommended, however, that the test temperature be raised to 82 ± 1°C when testing products more viscous than 90 mm2/s at 40°C.

Features

1. It adopts single-chip control and PID self-tuning temperature control technology with fast heating and high control precision;

2. The instrument is automatically stirred and timed, and the test tube mixing motor boom is automatically raised and lowered;

3. Automatic prompt function, automatic alarm when the experiment is over;

4. The mechanical transmission is noise-free, and the heating parts are made of stainless steel, which is corrosion-resistant and durable;

5. The constant temperature bath is round glass cylinder with uniform temperature distribution inside and with good temperature control effect;

6. Automatic printing and storage that can store 100 results.

 Technical Parameters

 Technical parameters
