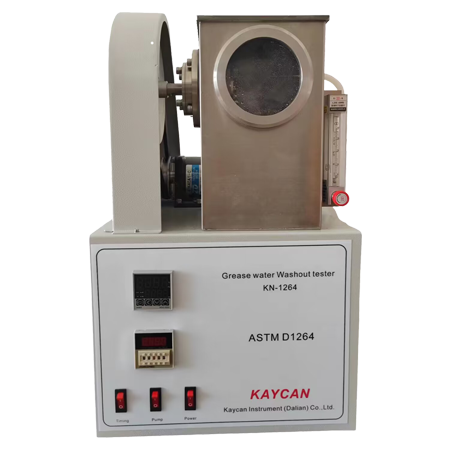

KN-1264 Water Washout Characteristics Of Lubricating Grease

Overview

  KN-1264 Water Washout Characteristics Of Lubricating Grease conforms to the ASTM D1264 Standard Test Method for Determining the Water Washout Characteristics of Lubricating Greases. This apparatus covers the evaluation of the resistance of a lubricating grease to washout by water from a bearing, when tested at 38 and 79°C (100 and 175°F) under the prescribed laboratory conditions. It is not to be considered the equivalent of service evaluation tests. Precision and bias was determined using grease ranging from NLGI 3 to 0 grades in the research report

Features

1.Stainless steel bath with good bearing and SS spray circuit

2.Imported motor direct drive spindle, silence and stable

3.Digital tachometer, real time display revolving speed

4.Flowmeter, two groups of precision needle valve to control the flow rate

Technical parameters

1.Rated voltage: AC 220V±10% 50Hz or 110V±10% 60Hz

2.Sink heating power: 500W

3.Sink temperature range: Room temperature ~ 100℃,continuously adjustable

4.Control temperature accuracy: ± 1 ℃

5.Total power: 600 W

6.Spray water: 5 ± 0.5ml/s.

7.Bearing speed: 600 ± 30r/min

8.Ambient requirements: Temperature: 10～40℃；Humidity≤85%
