BS/IP/RF U-Tube Reverse Flow Viscometers for Opaque Liquids

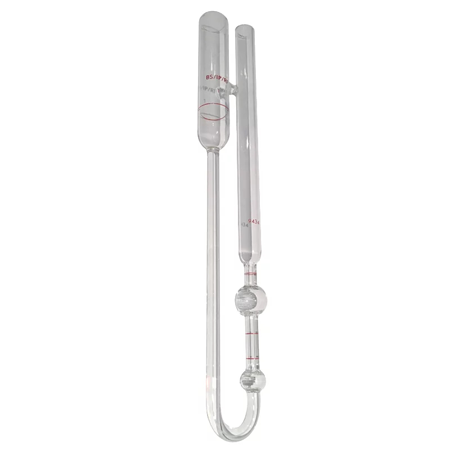

U-TUBE Reverse Flow Viscometer.png

Size No.	Nominal Viscometer Constant (mm²/s)/s	Kinematic Viscosity Range mm²/s	Inside Diameter of Tube R, mm (2%)	Length of Tube R, mm	Inside Diameter at E, F, and H mm	Volume Bulb C ml(±5%)
1	0.003	0.6 to 3	0.51	185	3.0 to 3.3	4.0
2	0.01	2 to 10	0.71	185	3.0 to 3.3	4.0
3	0.03	6 to 30	0.93	185	3.0 to 3.3	4.0
4	0.1	20 to 100	1.26	185	3.0 to 3.3	4.0
5	0.3	60 to 300	1.64	185	3.0 to 3.3	4.0
6	1.0	200 to 1000	2.24	185	3.0 to 3.3	4.0
7	3.0	600 to 3000	2.93	185	3.3 to 3.6	4.0
8	10	2000 to 10000	4.00	185	4.4 to 4.8	4.0
9	30	6000 to 30000	5.5	185	6.0 to 6.7	4.0
10	100	20000 to 100000	7.70	210	7.70	4.0
11	300	60000 to 300000	10.00	210	10.00	4.0
