Product
​KN-525Z Gasoline Oxidation Stability Tester

ASTM D525.png

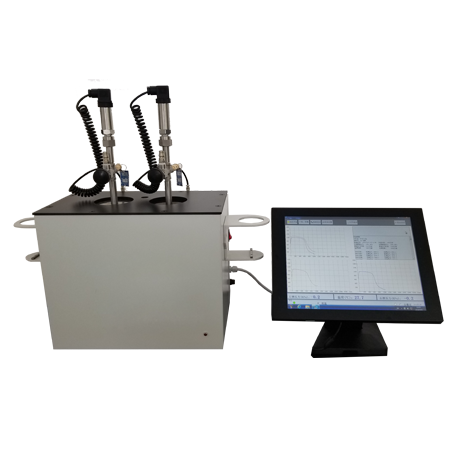

KN-525Z Gasoline Oxidation Stability Tester

Overview

  KN-525Z Gasoline Oxidation Stability Tester conforms to ASTM D525 standard. It is used to test the stability of gasoline in finished form only, under accelerated oxidation conditions. (Warning This test method is not intended for determining the stability of gasoline components, particularly those with a high percentage of low boiling unsaturated compounds, as these may cause explosive conditions within the apparatus.).



Features

1. The temperature control adopts human-computer interface of touch screen, easy to use, convenient to observe.

2. The screen shows terminal point after reaching the inflection point.
3. The instrument adopts advocate complementary type heating, warming fast and reducing the power consumption.

4. The instrument bath adopts stainless steel material, corrosion resisting and antioxidant. The inner of the instrument is equipped with automatic water charging system, keeping the water level.

5. The instrument can do two groups of experiment improving the working efficiency.
6. The instrument can detect the leakage of testing bomb and show the result automatically.
7. The instrument adopts imported AJG, high accuracy, good stability, can revise the pressure



Technical Parameters

Rated   voltage

220V±10%   50HZ

Main   heating power

1000W

Auxiliary   heating power

1500W

Temperature   controlling point

100°C

Temperature   controlling precision

±0.5°C

Operation   mode

Four-strand   touch screen type

Sensor

Pt100   (platinum resistor)

Bath   hole

2   holes

Ambient   requirement

Temperature:15~30°C;   Humidity≤85%
