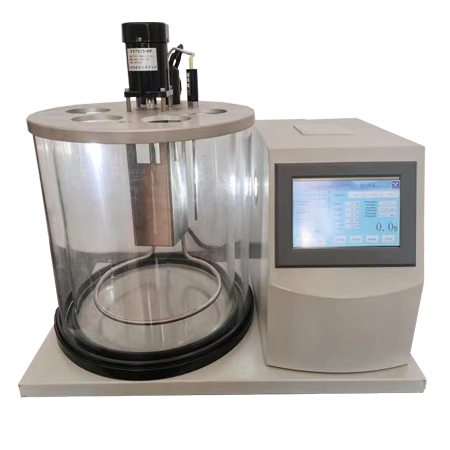

KN-445BZ Semi Automatic Kinematic Viscosity Apparatus

Overview

KN-445BZ Semi Automatic Kinematic Viscosity Apparatus conforms the ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity). It is used to test the of liquid petroleum products, both transparent and opaque, by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer. The dynamic viscosity, η, can be obtained by multiplying the kinematic viscosity, ν, by the density, ρ, of the liquid. Under certain constant temperature. The range of kinematic viscosities covered by this apparatus method is from 0.2 to 300 000 mm2/s at all temperatures.

Features

1.       Large LCD, independent research and development of embedded temperature control system, plastic injection integrated display screen frame is attractive and reasonable. Meanwhile, it has the authority management function, which effectively prevents non-professionals from setting the key parameters of the analyzer.

2.       Double-layer transparent round glass constant temperature bath, 20L glass cylinder which is heat preservation and explosion-proof.

3.       With temperature correction function, the correction value will be lost after power off.

4.       LED lighting, illuminating the capillary line, clear and not dazzling.

5.       Dedicated viscometer holder, easy to operate

6.       Automatic timing, calculation and convert to the viscosity index

7.       Embedded thermal printer, it features quiet, fast and clear

Technical Parameters

1. Temperature range：Ambient~100℃, adjustable

2. Accuracy：±0.1℃

3. Heating power：1.5KW

4. Test station：4

5. Rated voltage：AC220V±10％  50Hz

6. Ambient temperature requirement：5℃～40℃

7. Relative humidity：≤85％
