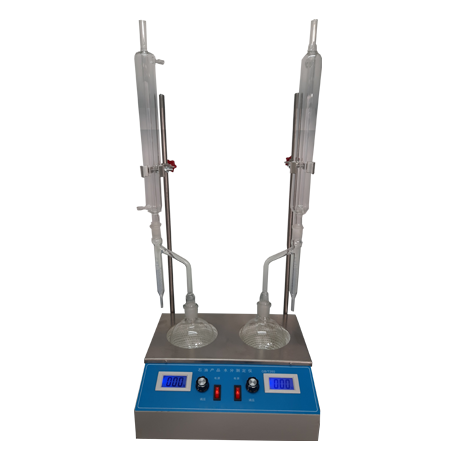

KN-4006A  Water in Crude Oil Apparatus （Distillation Method）

Overview

KN-4006A  A knowledge of the water content of crude oil is important in the refining, purchase, sale, or transfer of crude oils. It conforms to the ASTM D4006 Standard Test Method for Water in Crude Oil by Distillation. It is used to test water in crude oil by distillation.

KN-4006：single element

KN-4006A：double elements

Features

1.Stepless solid-state voltage regulator, heating without fire, safety and reliability.

2.Heating jackets no flame, safe and reliable.

3.Voltmeter shows clearly, accurate temperature, good insulation properties.

4.simple operation with elegant structure.

Technical parameters

1.Rated voltage: AC 220V±10% 50Hz

2.Power: 0~650W Continuously adjustable

3.Heating method: Heating jacket

4.Adjust the display: AC voltmeter 0~250V

5.Temperature control mode: Stepless voltage solid-state regulator

6.Distillation flask: 1000ml

7.Accepting bottles: 5ml, scale 0.05ml

8.Liebig condenser: 400mm

9.Temperature accuracy: ± 0.1°C

10.Ambient requirements: Temperature: 10~40°C; Humidity≤85%
