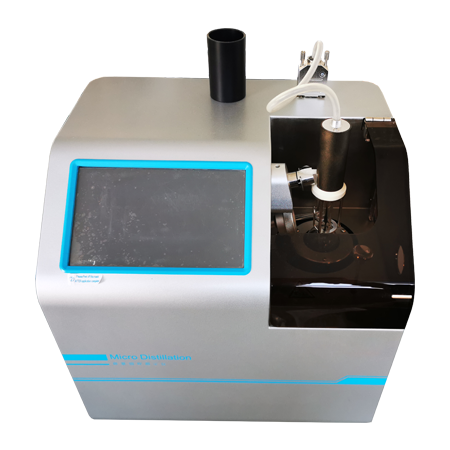

KN-7345 Automatic Micro Distillation Apparatus

Overview

KN-7345 Automatic Micro Distillation Apparatus conforms to ASTM D7345 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure (Micro Distillation Method). The distillation (volatility) characteristics of hydrocarbons have an important effect on their safety and performance, especially in the case of fuels and solvents. The boiling range gives information on the composition, the properties, and the behavior of the fuel during storage and use. Volatility is the major determinant of the tendency of a hydrocarbon mixture to procedure potentially explosive vapors.

Features

1.         Faster test than ASTM D86

2.         Only 10ml sample needed

3.         One button operation, system will judge the end point automatically

4.         With good repeatability and accuracy

5.         Be able to test the petroleum products with range 30~370℃

Technical parameters

1.         Application: Gasoline, diesel, kerosene, fuel oil, heavy oil and other mineral oil

2.         Rated voltage: 220V

3.         Sample volume: 10ml

4.         Measuring range: 30~370℃, accuracy: 0.1℃

5.         Temperature measuring element: Imported sensor

6.         Power consumption: Standby:15W, Full load: 200W

7.         Ambient temperature: Room temperature

8.         Relative Humidity＜90%
