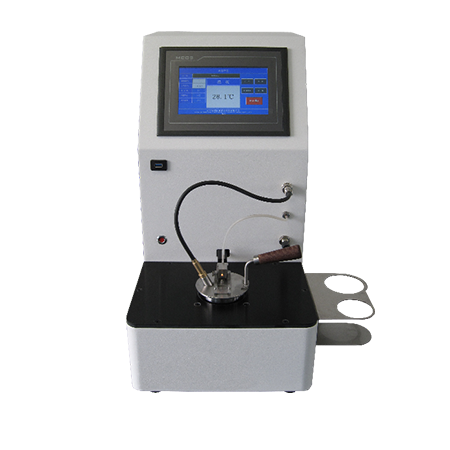

KN-56Z Automatic Tag Closed Cup Flash Point Tester

Overview

KN-56Z Automatic Tag Closed Cup Flash Point Tester conforms to ASTM D56 Standard Test Method for Flash Point by Tag Closed Cup Tester. Flash point measures the tendency of the specimen to form a flammable mixture with air under controlled laboratory conditions. It is only one of a number of properties that shall be considered in assessing the overall flammability hazard of a material.

Flash point is used in shipping and safety regulations to define flammable and combustible materials. One should consult the particular regulation involved for precise definitions of these classes

Flash point can indicate the possible presence of highly volatile and flammable materials in a relatively nonvolatile or nonflammable material. For example, an abnormally low flash point on a sample of kerosene can indicate gasoline contamination.

Features

1.      Fast refrigerating speed, big depth, cold do -50℃ oil sample test

2.      From room temperature to -60℃ just needs 30min

3.      Realize slope temperature rising, 3℃/min, 1℃/min

4.      Equips with liquid level overflow port and liquid adding port

5.      Glass PT100, temperature sensing rate is same as thermometer

6.      Touch screen operation, thermal printer, store thousands of data

7.      Equips unknown flash point detection

8.      Ion ring detects flash point automatically, ON/Off scribing ignition automatically

Technical parameters

1.      Rated voltage: AC220V±10%, 50Hz

2.      Power: 1500W

3.      Operation way: Touch LCD

4.      Test temperature: -40~70℃

5.      Ignition gas source: Pipelined gas or LPG, which pressure is less than 10Kpa

6.      Printer: Thermal printer

7.      Cooling mode: Double compressor refrigeration

8.      Ambient requirements: Temperature 10~40℃, Humidity≤85%
