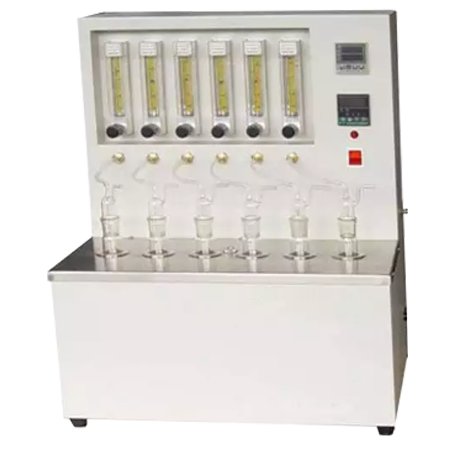

KN-6617 Ageing Characteristics Tester

Overview

  KN-6617 Ageing Characteristics Tester conforms to ISO 6617 Petroleum-based lubricating oils – Ageing characteristics – Determination of change in Conradson carbon residue after oxidation. This tester is able for determining the ageing characteristics of petroleum-based lubricating oils. It is applicable to those oils which have an evaporation loss of less than 15% mass fraction.

Features

1. Consists of temperature controlling system, metal bath and air regulating system

2. Adopts digital display temperature controller, it features high accuracy and precision

3. Adopts aluminum heating bath which features fast heating speed, equipped with thermal insulation protection

4. The actuator adopts solid state relay SSR, which has the characteristics of no contact, no motion noise, no spark, and long service life

Technical parameters

1. Temperature range: Ambient~200±0.5℃

2. Working mode: Digital display, metal bath

3. Test station: 6

4. Flow rate: 250ml±4ml/min

5. Rated Voltage: AC220V±10%, 50Hz
