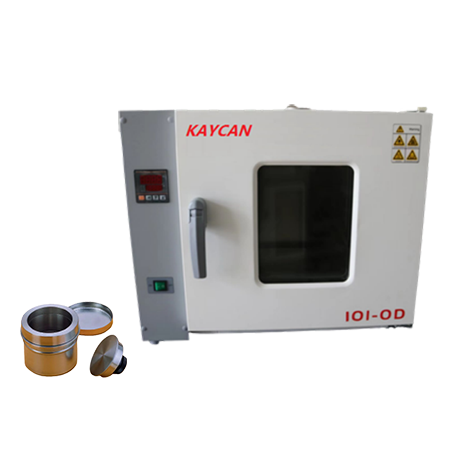

KN-121 Apparatus for Oil Separation from Lubricating Grease

Overview

 KN-121 Apparatus for Oil Separation from Lubricating Grease conforms to IP 121 Determination of Oil Separation from Lubricating Grease – Pressure Filtration Method. A cylindrical column of grease resting on a metal gauze cone is subjected to a fixed pressure in excess of the hydrostatic pressure of the grease. The quantity of oil separated through the gauze after standing for 42h or 168h at 40℃ is taken as a measure of the stability of the grease towards oil separation during storage.

Features

1.     Stainless steel liner, double-layer tempered glass, thickened thermal insulation cotton

2.     Temperature value display: Digital display temperature controller

3.     Auxiliary menu, be able to do alarm over temperature, deviation correct and menu locking

Technical parameters

1.     Applicable standard: IP121, DIN51817

2.     Test unit:  2

3.     Temperature control: 40~200℃±1℃

4.     Sieve aperture: 240 mesh

5.     Mass weight: 100g

6.     Oil cup: Stainless steel, 0.34kg
